GRUNDIG Satellit 208 Transistor 6000









Quick Specs:

FM,LW,MW,17 x SW

Double conversion

44x26x12cm (whd)

6,1Kgs



Full Specs

More Info

Antenna Info

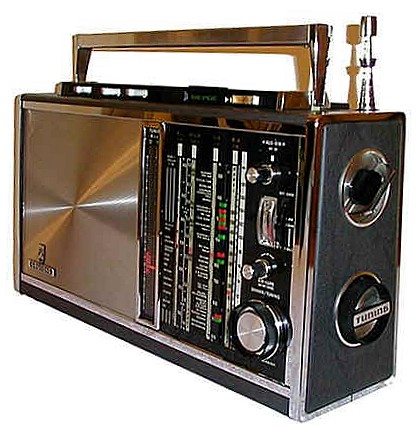

On the right: Turret tuner selector and fine-tuning wheel (both "pop-out") (Black outfit version)

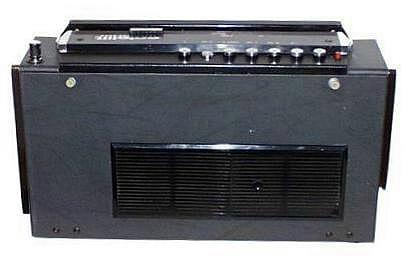

Back of radio with hidden (behind grille) antenna/etc. connectors

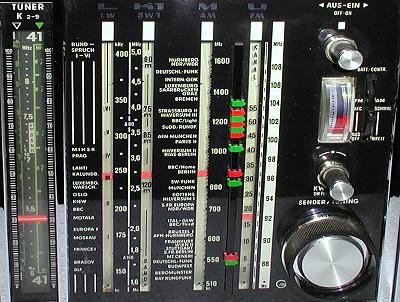

     Tuning scales with 3 separate tuning mechanisms

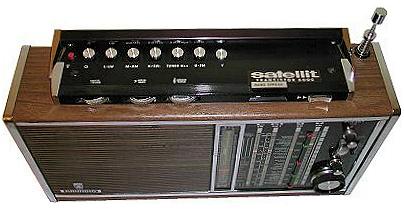

        More controls on top (Wood outfit version)

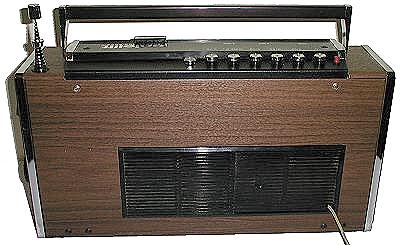

              Back of radio with power cord inlet





                       Front side of users manual





Signal/Battery Meter &             Now requires external (optional)

AFC/Bandwith filters                SSB/BFO control unit

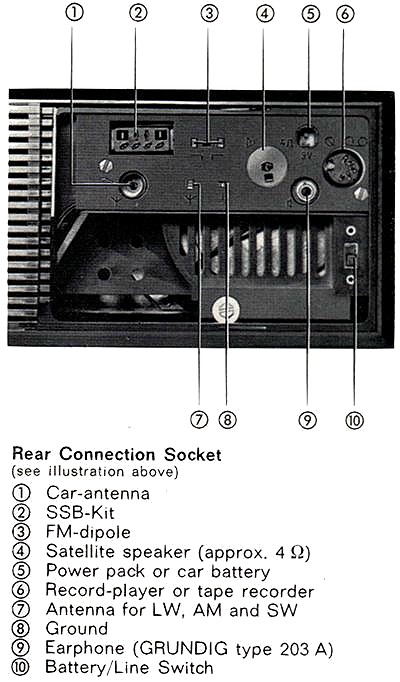

Below you can find a description of the controls (in the hidden compartment) on the back of the radio:
